產品概述：

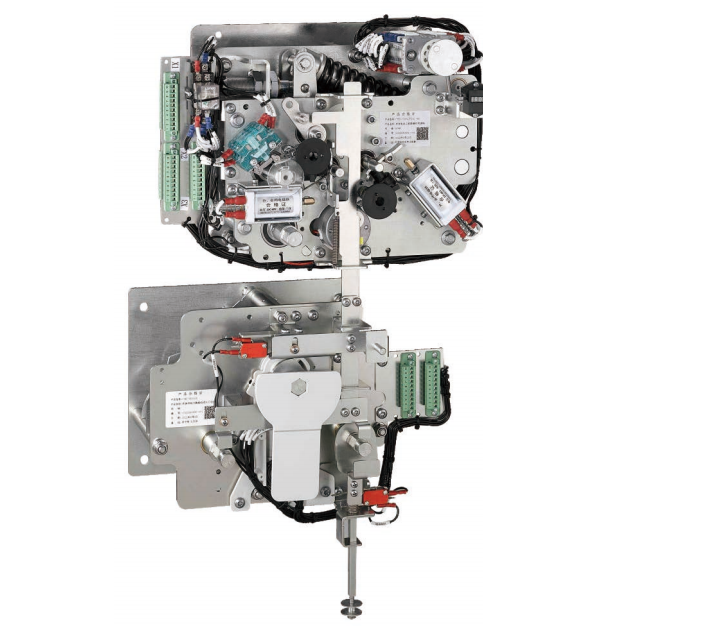

此款適用于HBXGN-12/T630-20型，空氣絕緣交流金屬封閉環網開關設備，該彈操動機構符合GB1984-2003高壓交流斷路器的技術要求。機構具有重合聞功能，體積(尺寸)小,穩定性高，適應性強，安裝方便，電動接線產品用戶只需按圖標識插接線，幾分鐘即可完成繁瑣二次接線工作。

This model is suitable for HBXGN-12/T630-20, air-insulated AC metal closed ring network switchgear, the spring operating mechanism meets the technical requirements of GB1984-2003 high voltage AC circuit breaker. The mechanism has the function of reclosing, small volume (size), high stability, strong adaptability, easy installation, electric wiring product users only need to plug in the wiring according to the figure identification, and the cumbersome secondary wiring work can be completed in a few minutes.

技術參數：

額定電壓:DC220V，DC110V，DC48V，DC24V
Rated voltage:DC220V，DC110V，DC48V，DC24V
機構輸出角度:約23° Mechanism outputangle:about 23°
合閘平均速度: (合前6mm):0.9±0.3m/s The average closing speed was 0.8±0.2 m/s (6mm before closing)
分閘平均速度: (剛分6m):1.4±0.3m/s The average speedofbrake opening was 1.4±0.3 m/s
合閘時間: ≤60ms Closing time:≤60ms
分閘時間: ≤50ms Opening time:≤50ms
操作力矩: ≤110N Operating torque:≤110N
機械壽命: >10000次 MechanicalLife:≥10,000times
機構重量:11.65KG Body weight: 11.65KG
